SOUNDTECH
TA-667C World Travel Adaptor with GaN PD67Watts USB Quick Charger
FEATURES/DESCRIPTION:

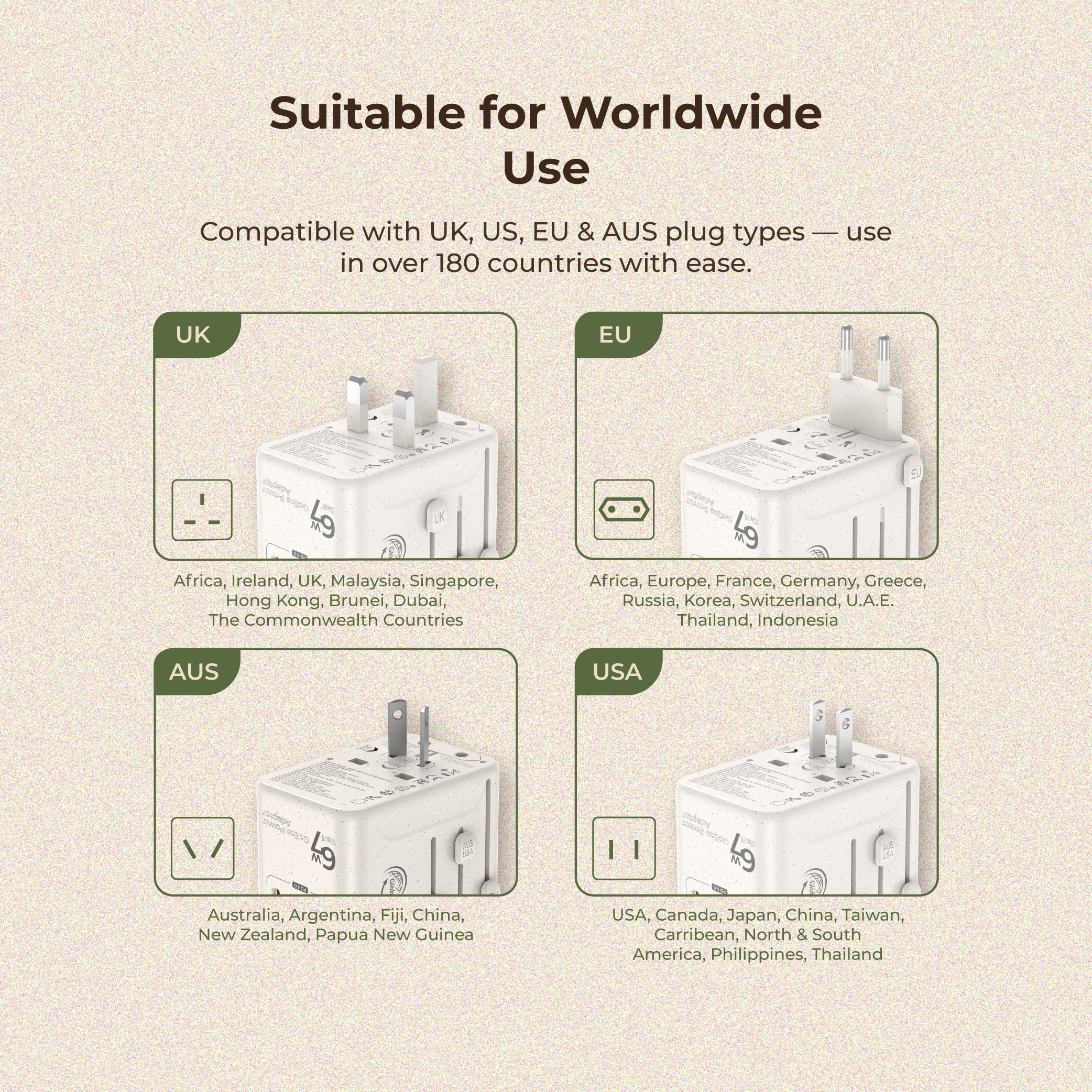

• Applicable for usage in more than 180 countries
• Universal socket outlet
• Safety Shutter
• Made from Wheat fiber plastic and certified under by Global Recycled Standard
• Power indicator light
• Auto-resetting fuse

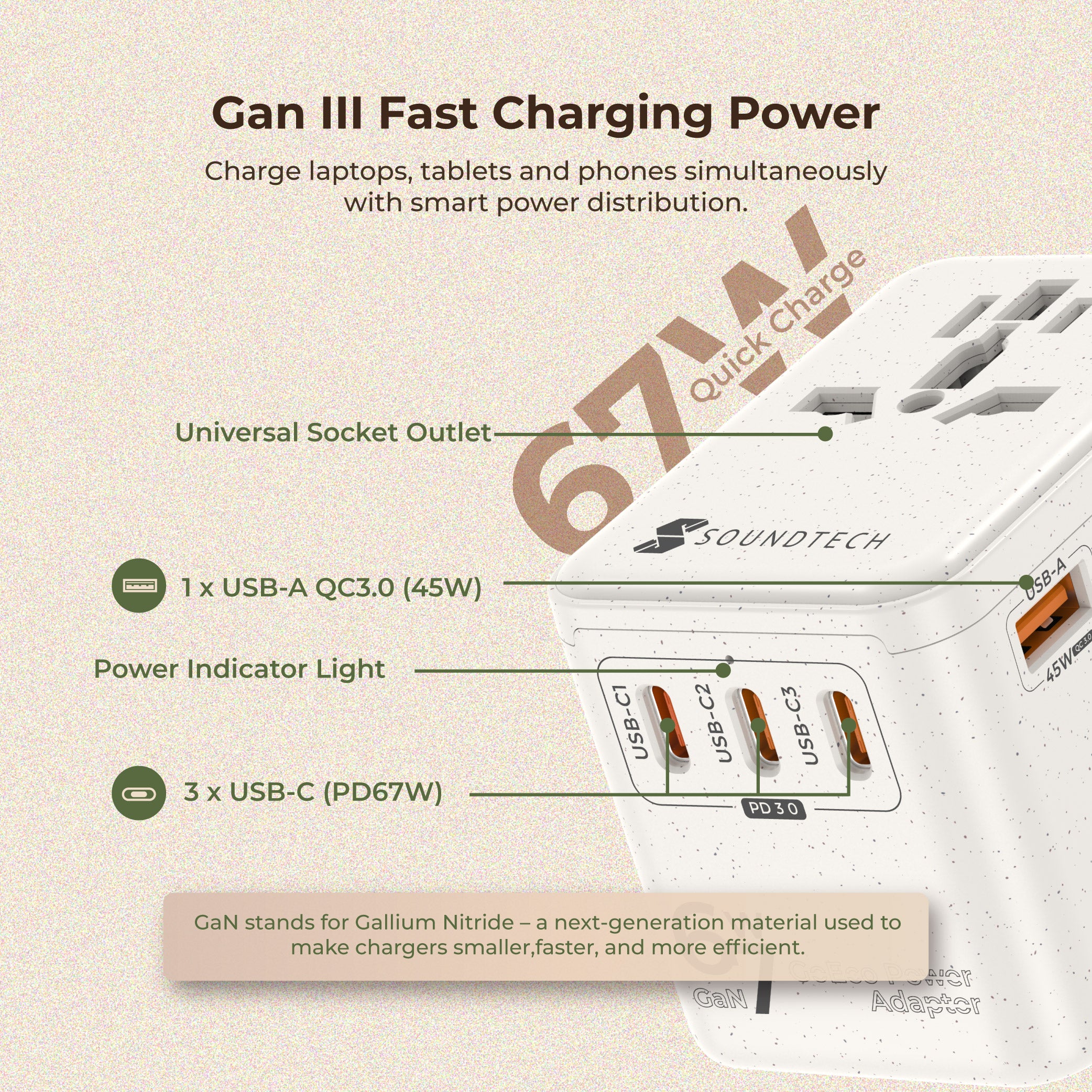

• 3 x USB-C GaN III (PD67W) port
• 1 x USB-A QC3.0 (45W) port
• 3 Year warranty (terms & conditions apply)

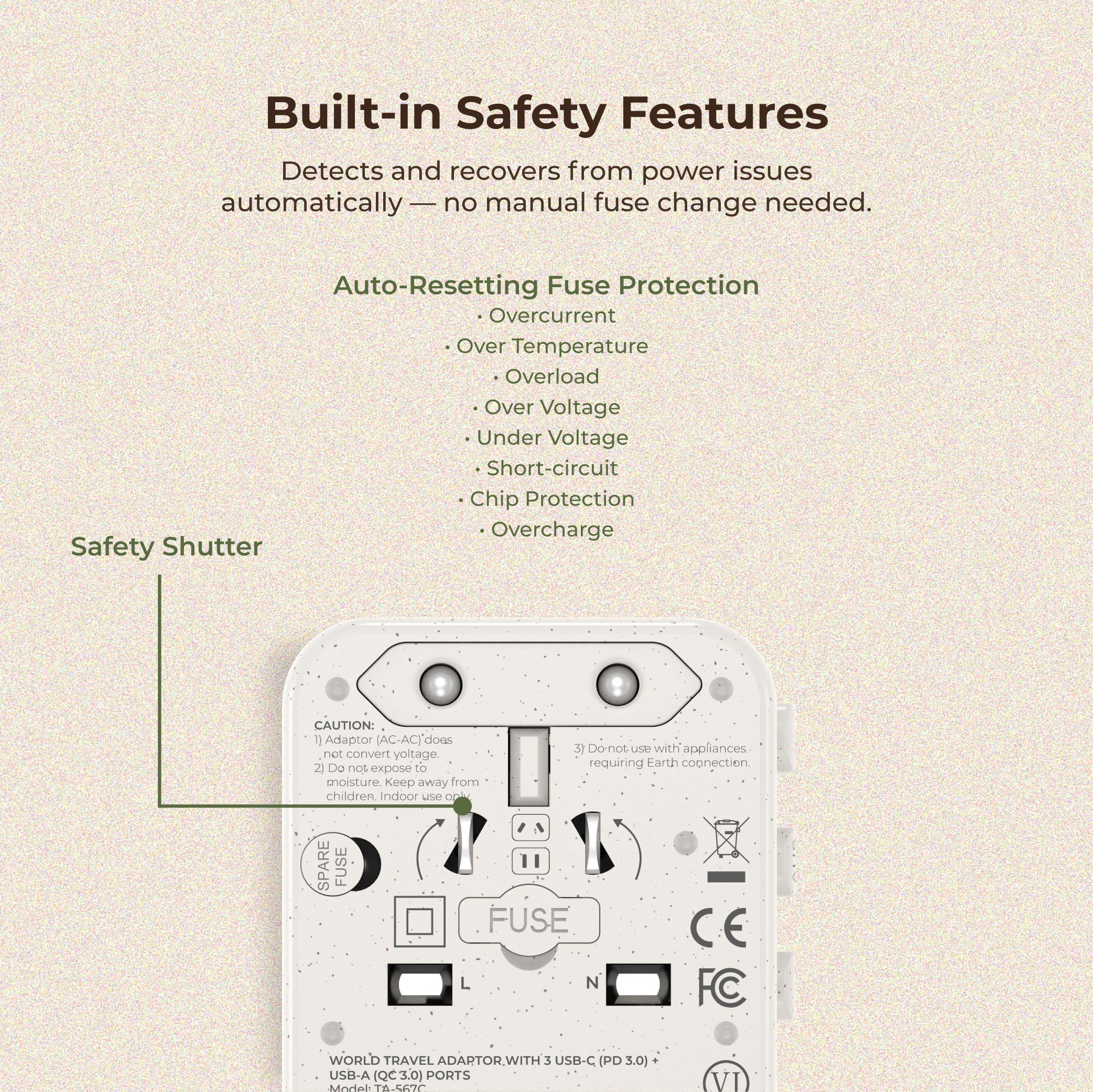

Auto-Resetting Fuse Protection
• Overcurrent
• Over Temperature
• Overload
• Over Voltage
• Under Voltage
• Short-circuit
• Chip Protection
• Overcharge
How to use?
1. Press down and slide out the “UK/ AUS/ EU/ US” button to slide out the “UK/ AUS/ EU/ US” plug-pin. Ensure the plug pin is fully-extended and locked in position.
2. To retract, press down and hold the “Retract” button;
3. Then press down and slide in the “UK/ AUS/ EU/ US” button to retract the “UK/ AUS/ EU/ US” plug-pin back to its
original position.
Attention:
Due to the nature of Power Delivery (PD) charging function, while USB-C PD port is applied for charging operation with other USB-A port, it is normal for the USB-A charging device to temporarily cease charging for 1-2 seconds and resume charging again when the USB-C charging device is connected or disconnected from the USB-C PD port.
Pickup available at No 1 Genting Link, #03-04 Perfect One, Singapore 349518
Usually ready in 4 hours

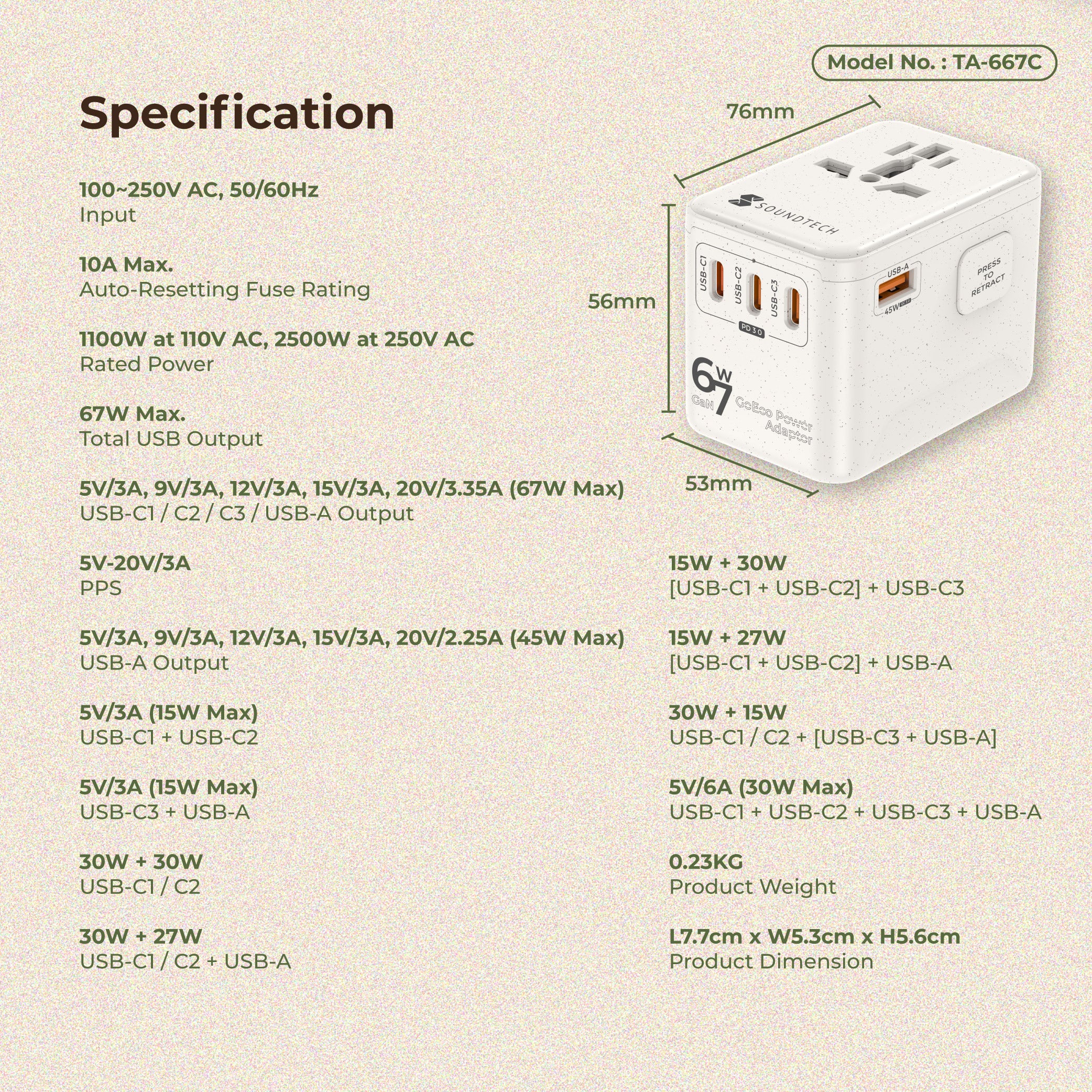

- Input: 100~250V AC, 50/60Hz
- Auto-Resetting Fuse Rating: 10A
- Rated Power: 1100W at 110V AC, 2500W at 250V AC
- Total USB Output: 67W Max.
- USB-C1 / C2 / C3 / USB-A Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.35A (67W Max)
- PPS: 5V-20V/3A
- USB-A Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (45W Max)
- USB-C1 + USB-C2: 5V/3A (15W Max)
- USB-C3 + USB-A: 5V/3A (15W Max)
- USB-C1 / C2: 30W + 30W
- USB-C1 / C2 + USB-A: 30W + 27W
- [USB-C1 + USB-C2] + USB-C3: 15W + 30W
- [USB-C1 + USB-C2] + USB-A: 15W + 27W
- USB-C1 / C2 + [USB-C3 + USB-A]: 30W + 15W
- USB-C1 + USB-C2 + USB-C3 + USB-A: 5V/6A (30W Max)
- Model No.: TA-667C
- Packing Dimension: L10cm x W6cm x H14.5cm
- Weight: 0.32KG
